We are manufacture the full range of Split Bolt Connectors. The range of Split bolt connectors are made from high-quality Europe Standard Split Bolts Connectors, Split bolt electrical connector, split bolt connector exporter from India

Benefits :

Features :

Split Bolt Connectors - Hexagonal Head

Material Used : BS 2874/Freely cut high quality brass rods

Sizes of Availability : Split Bolt Connectors are available from 6 mm² up to 500 mm². Higher or lower sizes are possible with customer demand

Finishing of the Product : Split bolt Connectors are rolled out in natural brass. They are also copper coated/electro tin finished/nickel plated. High conductivity copper also used on demand of the customers.

Europe Standard Split Bolts Connectors

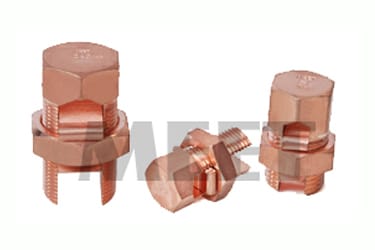

Europe Standard Split Bolts Connectors-2

Technical Specification :

SIZE mm2 ITEM CODE A (BOLT) A/F B C D (NUT) A/F
6 ESBC 6 10.00 24.00 3.20 12.70
10 ESBC 10 12.70 27.30 5.50 19.00
16 ESBC 16 12.70 27.30 5.50 19.00
25 ESBC 25 14.20 28.90 6.90 19.00
32 ESBC 32 18.00 31.00 8.10 23.00
35 ESBC 35 18.00 34.80 8.10 24.00
50 ESBC 50 23.00 42.00 9.60 27.30
70 ESBC 70 23.00 47.50 11.17 30.00
95 ESBC 95 25.40 53.00 14.00 34.30
100 ESBC 100 30.00 60.00 14.00 37.00
120 ESBC 120 30.00 59.00 16.00 35.55
150 ESBC 150 30.00 59.00 16.00 35.55
185 ESBC 185 32.00 59.00 18.00 38.10
240 ESBC 240 38.00 76.20 22.00 48.25
300 ESBC 300 38.00 76.20 23.00 52.45

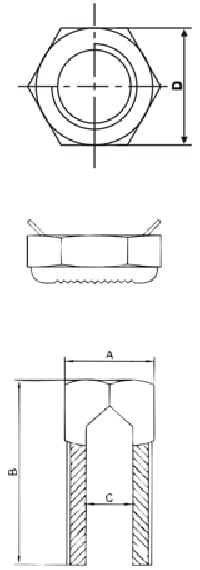

bolt parts diagram

 We manufacture and export wide range of Europe Standard Split Bolts Connectors
