Australian Standard Split Bolts Connectors
Material Used :
BS 2874/Freely cut high quality brass rods
Sizes of Availability :
Split Bolt Connectors are available from 16MM² up to 185MM². Higher or lower sizes are possible with customer demand
Finishing of the Product :
We use natural brass in the basic component and depending on the utility of the product we copper coat, electro tin coat or even nickel plating of various thickness and various multi plating. We offer the product in high conductive copper rods for making the product
Technical Specification :

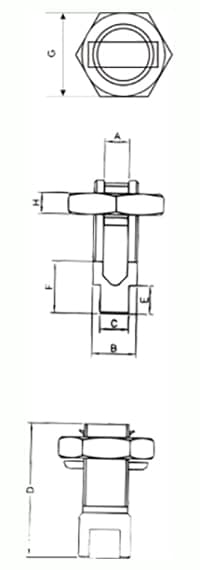

Maximum Conductor Size | ITEM CODE | Dimensions in mm (except B which is in inches) | |||||||
mm² | A | B | C | D | E | F | G | H | |
16 | EAR 16 | 5.30 | 1/2″ | 10.40 | 30.20 | 7.90 | 11.10 | 17.90 | 6.30 |
35 | EAR 35 | 8.30 | 5/8″ | 13.20 | 36.50 | 9.50 | 14.30 | 23.20 | 6.30 |
70 | EAR 70 | 10.90 | 7/8″ | 17.90 | 44.50 | 9.50 | 22.20 | 27.70 | 7.10 |
95 | EAR 95 | 12.90 | 7/8″ | 17.90 | 50.80 | 9.50 | 22.20 | 27.70 | 7.10 |
120 | EAR 120 | 15.00 | 1″ | 17.90 | 53.00 | 9.50 | 22.20 | 35.50 | 7.10 |
185 | EAR 185 | 18.50 | 1.25″ | 23.20 | 66.70 | 9.50 | 25.40 | 42.10 | 7.90 |
Australian Standard Split Bolts Connectors Manufacturer / split bolt connector
Australian Standard Split Bolt Connectors meet applicable Australian electrical standards and are commonly used in electrical systems for joining and splicing copper wires. These connectors provide a dependable and secure connection, guaranteeing efficient current flow and reducing the possibility of electrical problems. They are easy to install and remove due to their split construction, which eliminates the necessity for cutting or stripping the conductors. Their use of high-quality materials provides longevity and corrosion resistance, making them suited for both indoor and outdoor uses. Electricians and electrical experts rely on Australian Standard Split Bolt Connectors for their performance, safety, and compliance with local standards.
